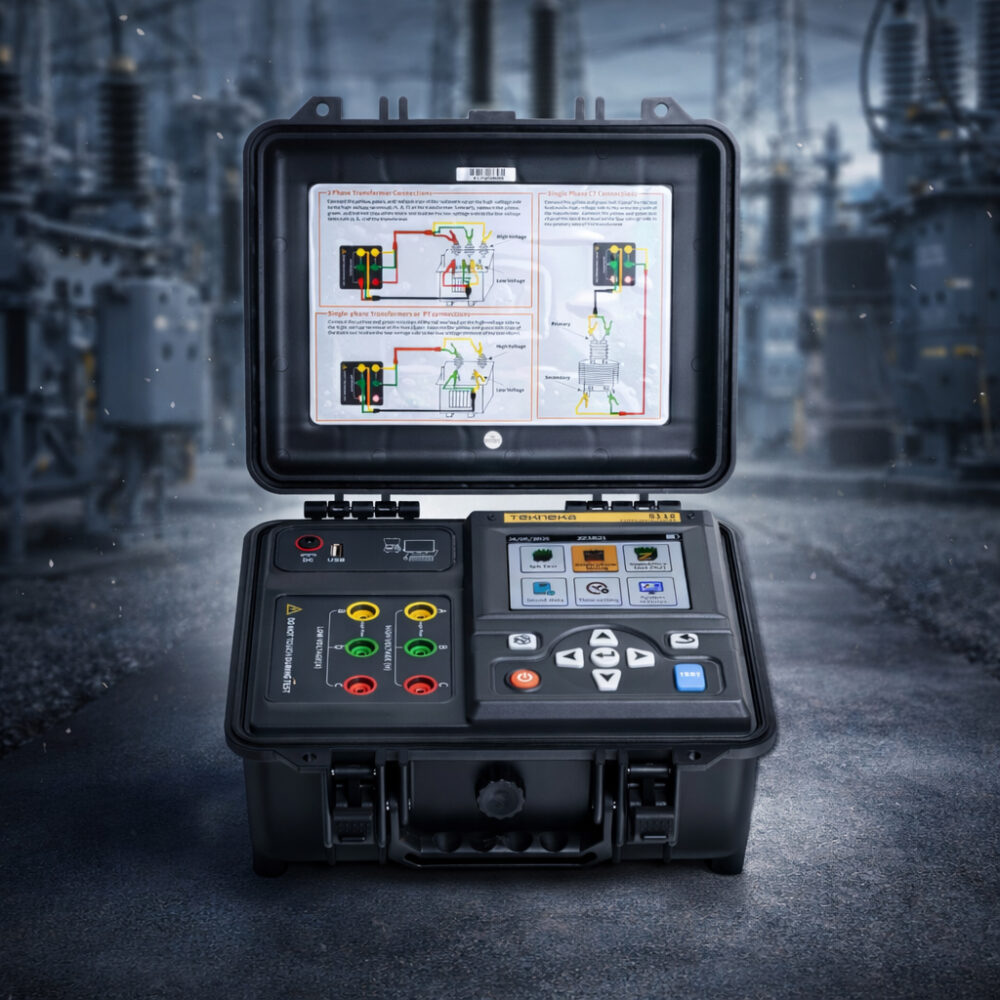

The Tekneka 8118 Transformer Turns Ratio (TTR) Tester delivers professional-grade performance for comprehensive transformer analysis. Featuring an auto-ranging ratio measurement from 0.9 to 10000, this versatile device supports Three-phase transformers, Single-phase transformers, Z-type transformers, and PT/CT ratio verification.
Features
- 5.6″ Color Touchscreen – Clear visualization of turn ratios, polarity, and phase angle
- Complete Test Suite – Vector group analysis, polarity verification, and continuous monitoring
- Data Storage & Export – Saves 500 test records and exports via USB in Word format
- Field-Ready Design – Rugged construction for reliable on-site testing
Applications
- Power Utilities – Verify transformer ratios during commissioning and maintenance
- Industrial Plants – Ensure optimal performance of PTs/CTs in electrical systems
- Transformer Manufacturers – Perform quality control checks before dispatch
- Service Technicians – Diagnose faulty windings, incorrect taps, or phase mismatches
- Laboratory Testing – Conduct R&D and compliance testing with precision
Package Includes
- Three Core Sheathed Test Leads (Red & Black)
- Bluetooth Printer
- Printing Roll
- Printer Charger
- Power Charger
- Dual A-Port USB Cable
- USB Cable
- User Manual
- Carrying Bag
