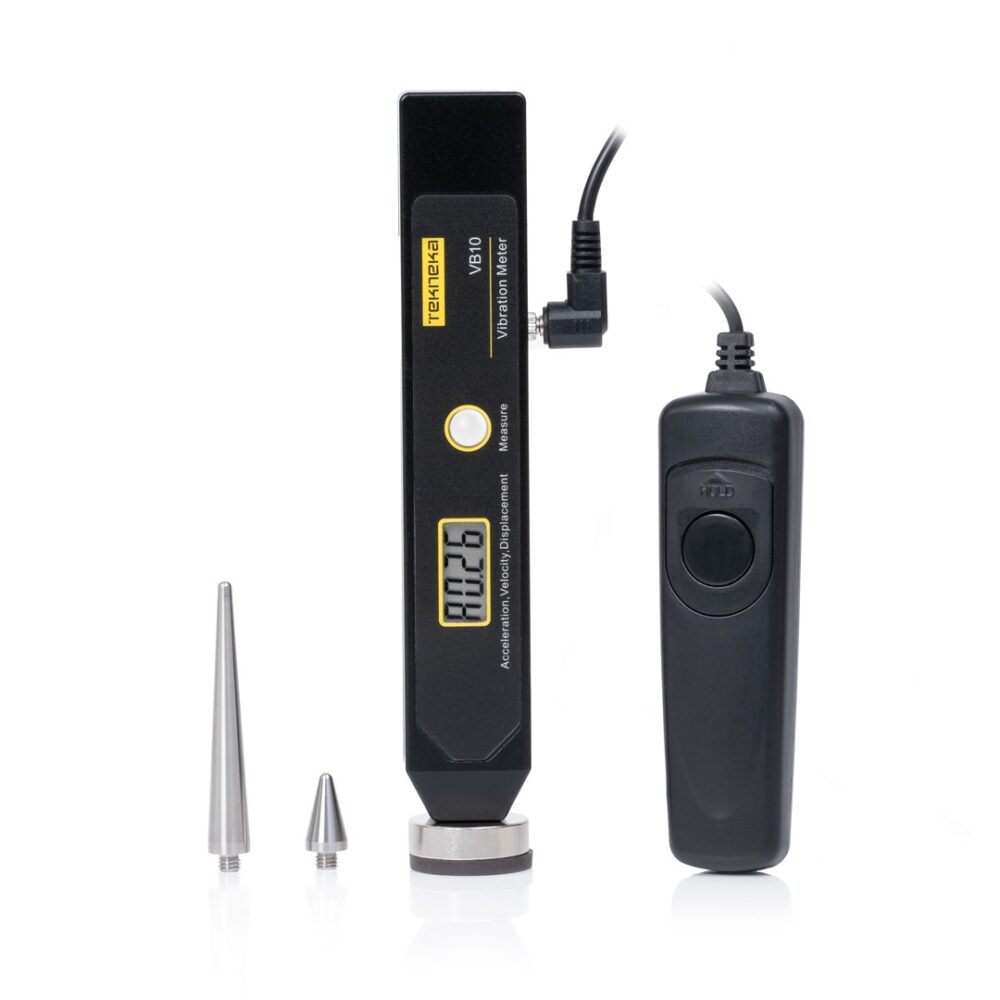

The Tekneka VB10 Vibration Meter is a high-performance handheld instrument designed for accurate vibration measurement and analysis in industrial applications. It features a reliable accelerometer sensor that measures acceleration, velocity, and displacement across a wide frequency range, helping detect imbalance, misalignment, and bearing faults in rotating machinery. With its durable design, long battery life, and clear LCD, the VB10 ensures accurate diagnostics and efficient maintenance in demanding environments.
Features & Specifications
-
Sensor Type: Accelerometer
-
Measurement Parameters:
-
Acceleration (m/s²): Equivalent Peak Value
-
Velocity (mm/s): True RMS Value
-
Displacement (mm): Equivalent Peak-to-Peak
-
-
Measurement Range:
-
Acceleration: 1 to 50m/s²
-
Velocity: 1 to 50mm/s
-
Displacement: 2 to 500µm
-
-
Frequency Response:
-
Acceleration: 10Hz to 1kHz ±10%
-
Velocity: 10Hz to 1kHz ±5%
-
Displacement: 20Hz to 500Hz ±10%
-
-
Linear Accuracy (at 80Hz): ±5% ±2 digits
-
Display: 4-digit LCD for clear data reading
-
Battery Type: 1/2 AA (3.6V) lithium battery
-
Power Consumption: 4 to 7mA operating current
-
Battery Life: Up to 100 hours continuous or 4000 test operations
-
Operating Temperature: 0°C to 50°C
-
Relative Humidity: <85%
-
Dimensions: 160 x 25 x 17mm
-
Weight: 120g (including battery)
Applications
- Predictive and preventive maintenance of motors, pumps, fans, and compressors.
- Detection of bearing wear, imbalance, and misalignment in rotating equipment.
- Vibration monitoring in industrial, manufacturing, and HVAC systems.
- Equipment diagnostics to enhance machine life and reduce downtime.
- Quality assurance and maintenance verification in workshops and plants.
