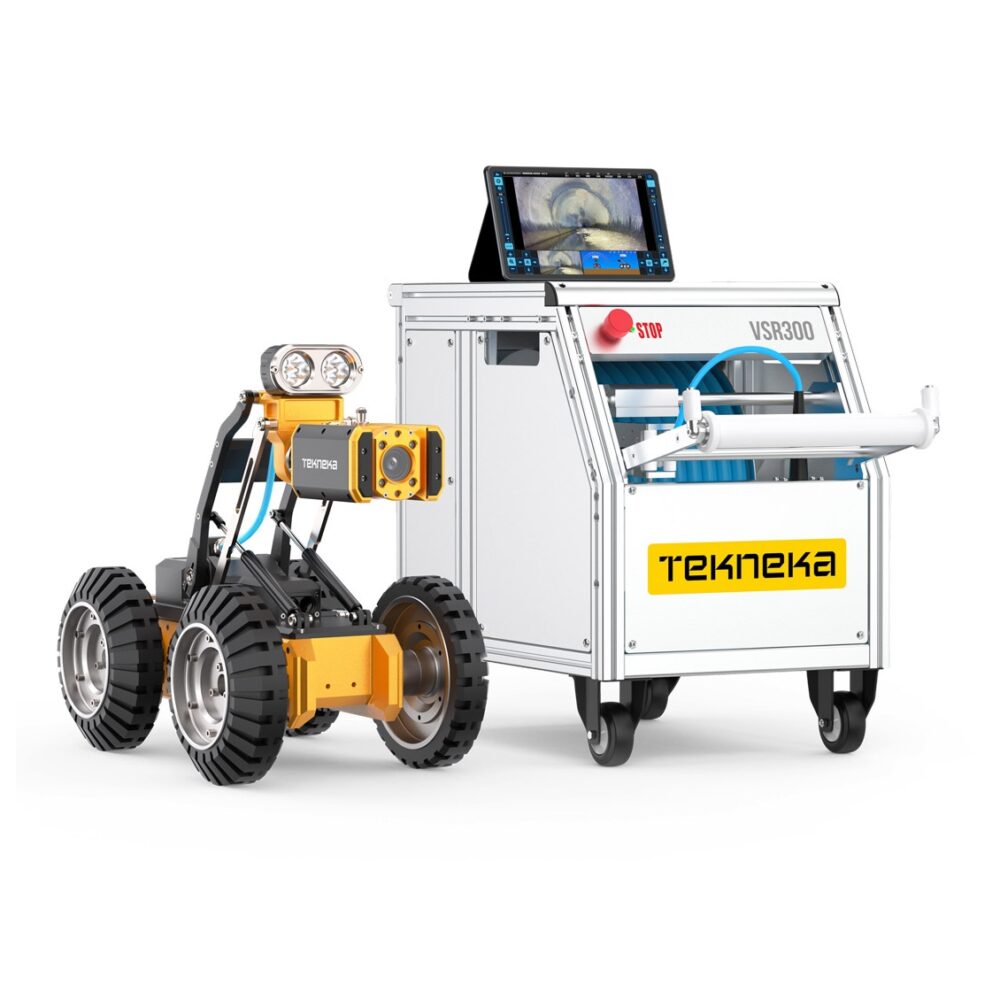

The Tekneka VSR300 is a professional-grade pipe inspection robot designed for the internal inspection of utility pipelines. Built on a rugged six-wheel crawler platform and equipped with a high-definition pan-and-tilt camera, the VSR300 delivers real-time video monitoring, image capture, and inspection data logging, enabling engineering teams to accurately assess pipeline conditions without requiring personnel to enter confined spaces. The system is fully self-contained, comprising a crawler unit, HD camera, cable reel, joystick controller, main control tablet, and portable power supply. It is ideally suited for municipal infrastructure inspections, oil & gas pipeline applications, and utility operators requiring reliable, high-quality pipeline condition assessment and documentation.
Features
- Adjustable electric lift accommodates pipe diameters from DN300 to DN3000 (12″ to 118″)
- High-definition pan-and-tilt camera with 10× optical zoom, 12× digital zoom, and 360° continuous rotation
- Full HD imaging with a 1920 × 1080 (2 MP) CMOS sensor and 0.05 lux low-light sensitivity
- Forward illumination provided by a 12-piece condenser LED array (40W total) with continuously adjustable brightness
- IP68-rated crawler and camera, suitable for operation in water depths of up to 10m
- Six-wheel drive system powered by dual 90W DC motors, providing a maximum travel speed of 32m/min
- Climbs gradients of up to 45°, depending on pipe conditions
- Four interchangeable rubber wheel sets (4″, 6″, 8″, and 10″) for flexibility across different pipe diameters
- 300m cable reel with a 1mm-precision counter and electromagnetic clutch
- Wireless-connected cable reel reduces operational complexity and improves field efficiency
- 1028Wh lithium power station provides approximately 8 hours of continuous operation
- U-shaped camera protection frame prevents collision damage in confined pipeline sections
- Built-in pressure sensors and indicators on both the crawler and camera
- Microsoft Surface tablet main controller with integrated pipe inspection software

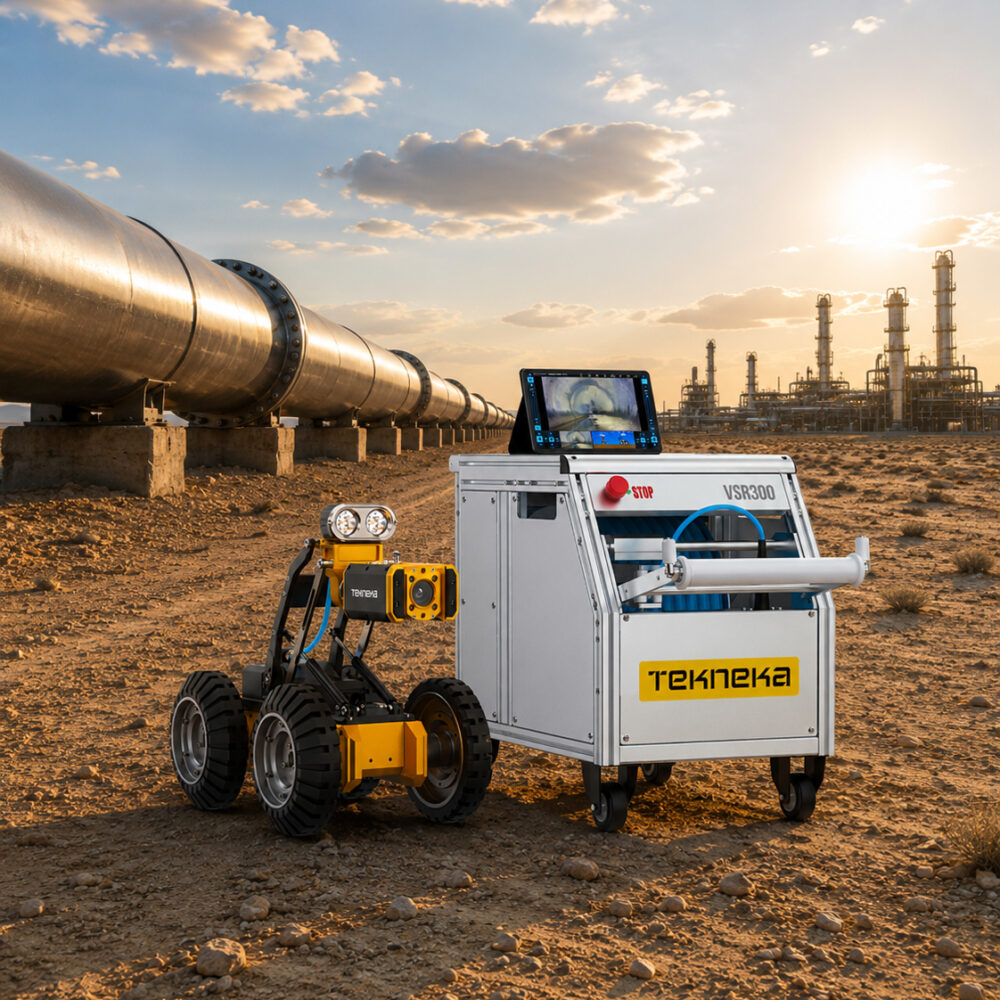

Applications
- Municipal stormwater and wastewater systems
- Water supply and distribution pipelines
- Industrial process and chemical pipelines
- Fuel gas transmission and distribution lines
- Pre and post rehabilitation assessments
- Defect detection and structural condition analysis
- Construction acceptance and asset management surveys
- Electrical conduit and cable duct inspections
Package Includes
- Crawler: 6-wheel drive crawler with adjustable electric lift and U-frame camera protection
- P&T HD Camera: IP68-rated pan-and-tilt HD camera with 10× optical zoom
- Main Control Tablet: Microsoft Surface tablet with pre-installed pipe inspection software
- Cable Reel: 300m cable reel with precision counter
- Power Supply Unit: 1028Wh lithium power station with AC/DC outputs
- Joystick Controller: Wired joystick for complete crawler and camera control
- Wheel Sets: Four sets of interchangeable rubber wheels (4″, 6″, 8″, and 10″)
- Downhole Cable: Flexible cable for well-depth inspection operations
- Manhole Pulley: Multi-section pulley for cable protection at entry points
- Internet Cable: Network cable for wired connectivity
- Pump: Pressure maintenance pump
- Crank: Manual cable winding mechanism
- Tool Kit: Hex wrenches, spanners, and fasteners
